Miller Arrow 25

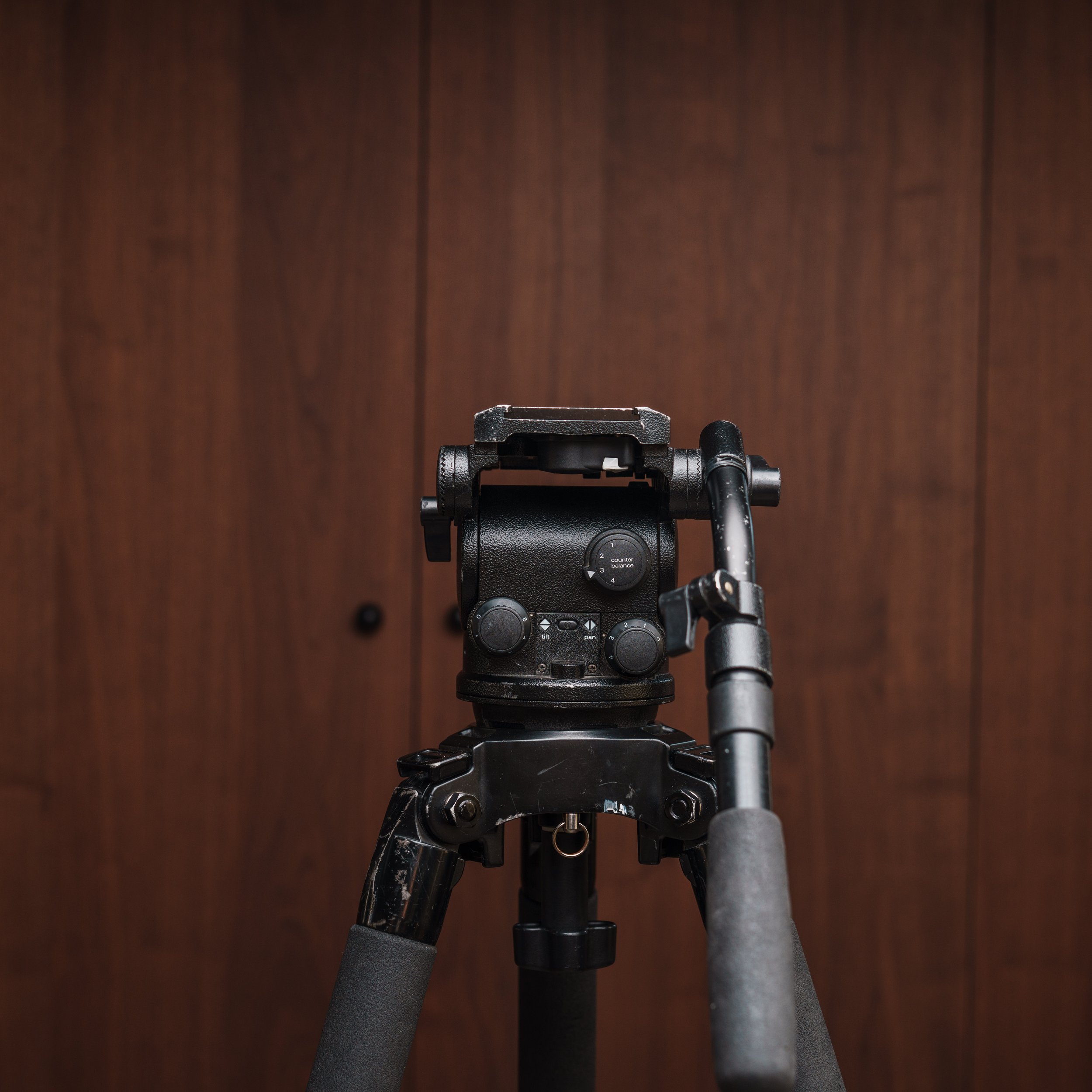

The robust design and construction of the Arrow 25 Fluid Head offers maximum stability, accuracy and durability and includes precision ball bearing mounted Fluid Drag Plate system in the Pan and Tilt assembly to deliver true fluid drag performance over the entire temperature and payload range.
The Fluid Drag and the Counterbalance system were designed to provide excellent control and repeatability and offer progressive equal increments of drag and torque.
The Arrow 25 Fluid Head also offers Illuminated single control location for operating Pan / Tilt, Counterbalance and viewing Bubble level.
Technical Data
Weight - kg (lb): 3.0 (6.6)
Payload Range - kg (lb): 5 - 14 (11.0 - 30.9)
Max Capacity - kg (lb): 25 (55.1)
Tilt Drag: 5 Selectable fluid drag positions + 0
Tilt Range: + 90o / -75o
Tilt Lock: Positive Lock calliper brake system
Pan Drag: 5 Selectable fluid drag positions + 0
Pan Range: 360o
Pan Lock: Positive Lock calliper brake system
Counterbalance System: 4 Selectable positions (see Fig 6)
Camera Platform: Type Quick release sliding platform with 70 mm travel.
Camera Plate: 1⁄4”, 3/8” and 1⁄4” + Locating Pin Carriage (Mini-DV mount)
Mounting Base: Ø100 mm Ball Levelling
Ball Level Range: 15o
Handle: Standard black anodised pan handle with adjustable angle.
Temperature range - oC(oF): -40o to +65o (-40o to +149o)
Construction: Lightweight diecast Aluminium alloy, moulded reinforced plastics
Sealing: Water & Dust resistant
Finish: Matt black (low sheen) durable powder coated with anti-corrosive pre treatment
The robust design and construction of the Arrow 25 Fluid Head offers maximum stability, accuracy and durability and includes precision ball bearing mounted Fluid Drag Plate system in the Pan and Tilt assembly to deliver true fluid drag performance over the entire temperature and payload range.
The Fluid Drag and the Counterbalance system were designed to provide excellent control and repeatability and offer progressive equal increments of drag and torque.
The Arrow 25 Fluid Head also offers Illuminated single control location for operating Pan / Tilt, Counterbalance and viewing Bubble level.
Technical Data
Weight - kg (lb): 3.0 (6.6)
Payload Range - kg (lb): 5 - 14 (11.0 - 30.9)
Max Capacity - kg (lb): 25 (55.1)
Tilt Drag: 5 Selectable fluid drag positions + 0
Tilt Range: + 90o / -75o
Tilt Lock: Positive Lock calliper brake system
Pan Drag: 5 Selectable fluid drag positions + 0
Pan Range: 360o
Pan Lock: Positive Lock calliper brake system
Counterbalance System: 4 Selectable positions (see Fig 6)
Camera Platform: Type Quick release sliding platform with 70 mm travel.
Camera Plate: 1⁄4”, 3/8” and 1⁄4” + Locating Pin Carriage (Mini-DV mount)
Mounting Base: Ø100 mm Ball Levelling
Ball Level Range: 15o
Handle: Standard black anodised pan handle with adjustable angle.
Temperature range - oC(oF): -40o to +65o (-40o to +149o)
Construction: Lightweight diecast Aluminium alloy, moulded reinforced plastics
Sealing: Water & Dust resistant
Finish: Matt black (low sheen) durable powder coated with anti-corrosive pre treatment
